All our fences are constructed from individual premounted panels of high quality chain link, stretched to perfect tension on full frames of galvanised tubing.
At the job site all panels are joined either at angles or in a straight line to form a solid fence wall. The option of barbed wire gives you extra security. Our posts can be driven into the ground or made free standing on concrete blocks.
All of our fences include stabilise poles to secure strong and sturdy fences on long runs and wind prone areas.
|
|
| |
 |
|
| |
Optional: Star Pickets may be used instead of concrete base where possible to create more of a permanent structure. Steel pickets are drilled 500mm into the ground and braced to panels with tie wire. |
|
|
| |
|
 |
|
 |
| |

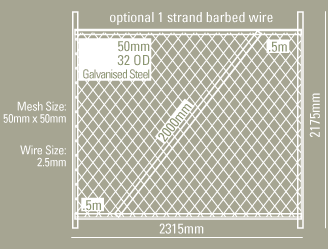

Panel Height:
Panel Length:
Panel Mass:
Chain Mesh:
Wire Size:
Galvanised Pipe:
|
2175mm
2315mm
23kg
Diamond
50mm x 50mm
2.5mm
32 OD
|
|
|
|
|
